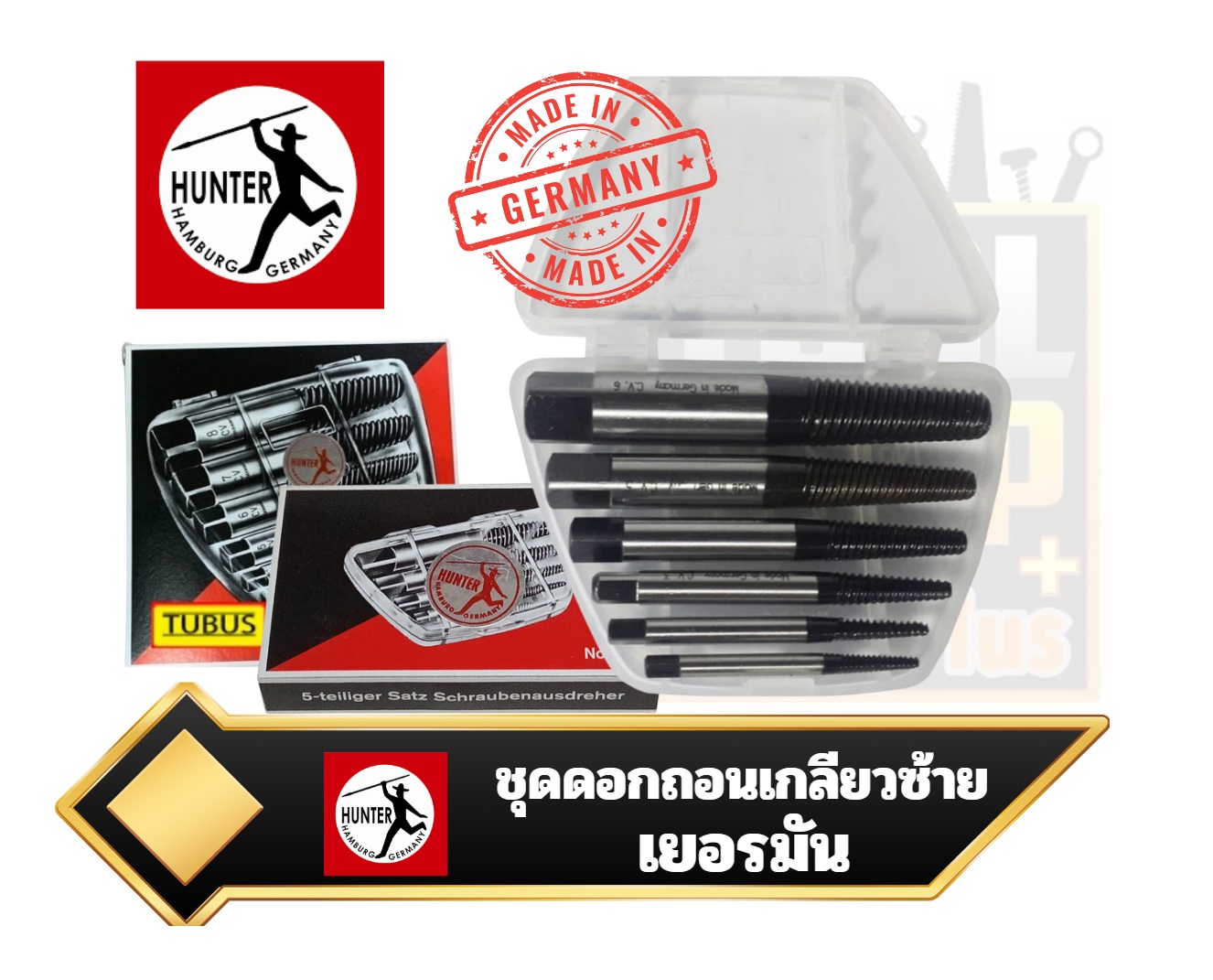

ชุดดอกถอนเกลียวซ้ายเยอรมัน HUNTER TUBUS Pipe Screw Extractor Set

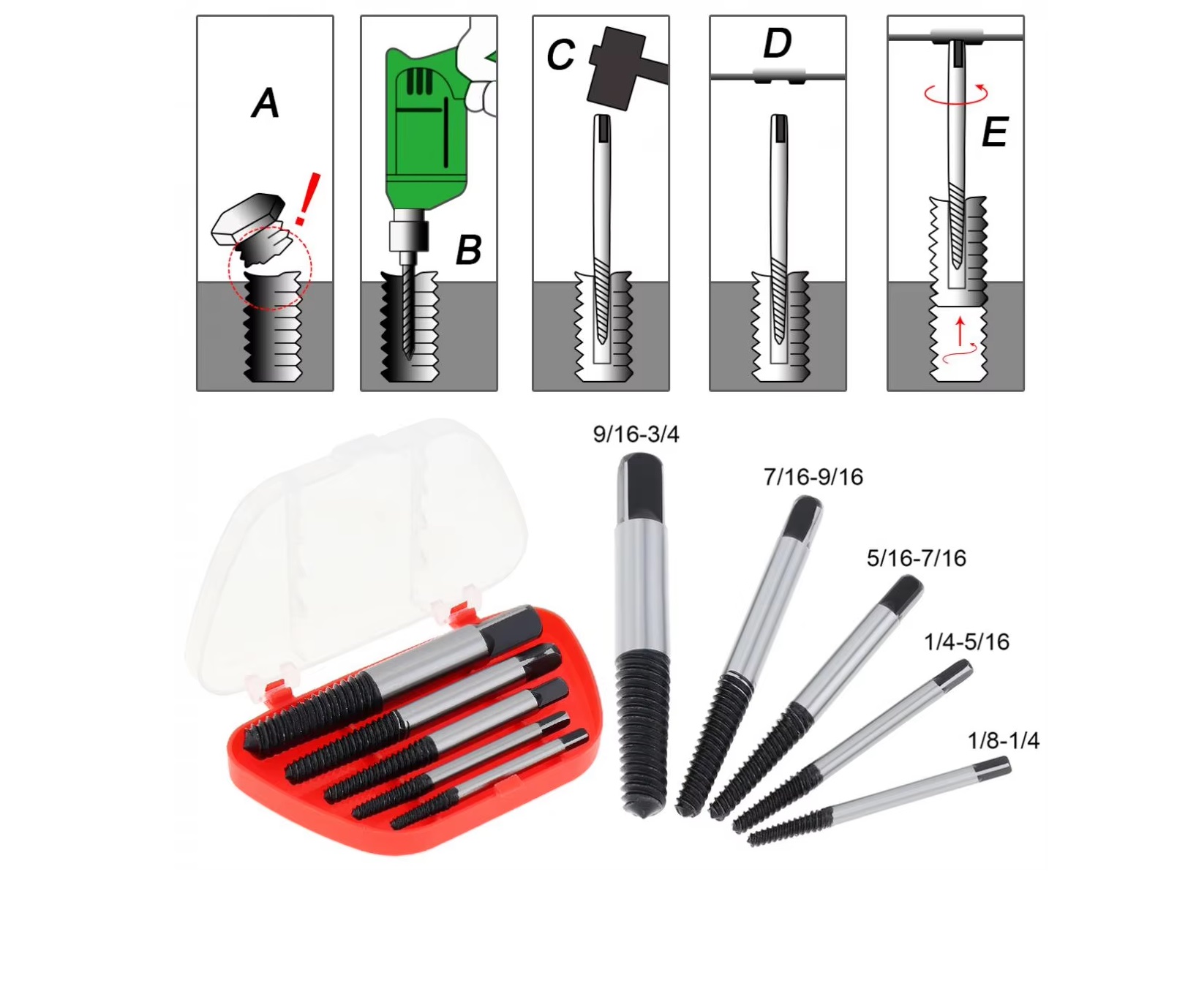

Extractors have a tapered, spiral flute; use them to remove broken screws, bolts, studs, pipe, and other threaded parts. Simply drill a hole in the broken part, insert the extractor, and turn it with a standard wrench or a tap wrench, unless noted. The broken part will back out without damaging the threads.

Contents:

Size 1
Small end : 1.75mm / 0.069
Large end : 3.95mm / 5/32
Overall length : 50mm / 2
For screws : M3 6 / 1/8 1/4
Twist drill : 2.5mm / 3/32

Size 2
Small end : 2.2mm / 0.087
Large end : 4.8mm / 3/16
Overall length : 60mm / 2 3/8
For screws : M6-8 / 1/4 5/16
Twist drill : 3mm / 1/8


Size 3
Small end : 3.3mm / 0.130
Large end : 6.4mm / 1/4
Overall length : 68mm / 2 11/16
For screws : M8-11 / 5/16 -7/16
Twist drill : 4.5mm / 11/64


Size 4
Small end : 4.75mm / 0.187
Large end : 8.4mm / 21/64
Overall length : 76mm / 3
For screws : M11-14 / 7/16 -9/16
Twist drill : 6mm / 15/64

Size 5
Small end : 6.35mm / 0.250
Large end : 11mm / 7/16
Overall length : 86mm / 3 3/8
For screws : M14 18 / 9/16 -3/4
Twist drill : 8mm / 5/16

Size 6
Small end : 9.5mm / 0.375
Large end : 15mm / 19/32
Overall length : 95mm / 3 3/4
For screws : M18-24 / 3/4 -1
Twist drill : 11mm / 7/16

Size 7
Small end : 12.7mm / 0.5
Large end : 19mm / 3/4
Overall length : 95mm / 4.1/8
For screws : M24-33 / 1 1.3/8
Twist drill : 14mm / 9/16

Size 8
Small end : 19mm / 0.75
Large end : 25mm / 1
Overall length : 100mm / 4.3/8
For screws : M33-50 / 1.3/8 2
Twist drill : 21mm / 53/64

Made in Germany
