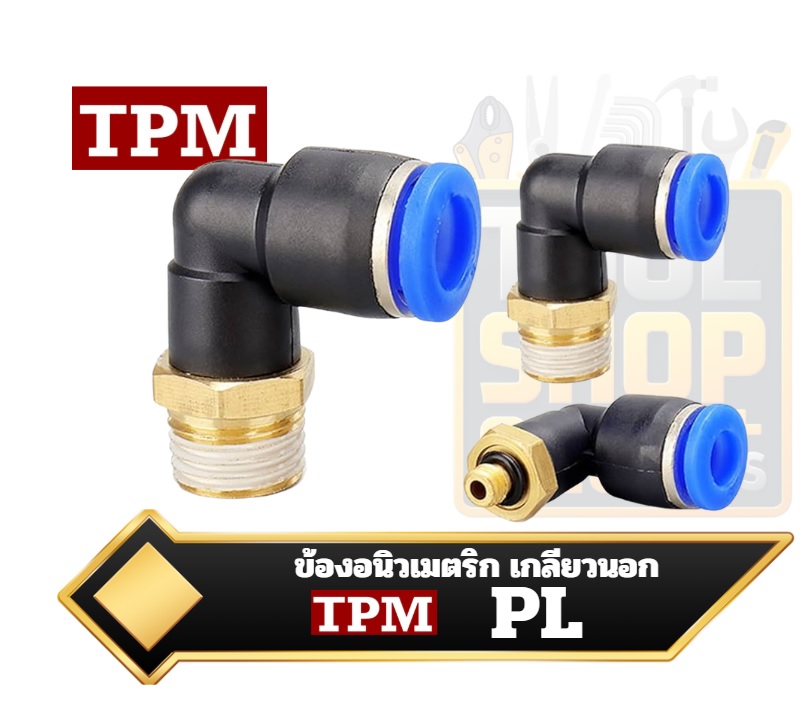

PL ข้องอนิวเมตริกเกลียวนอก PL Angle Pneumatic Fitting 1/4 3/8 1/2 1/8 BSP Male Thread Air Quick Connector L Shape Push-in Hose OD 6mm ,8mm ,10mm ,12mm
Product information:
Male Thread Size: 1/8", 1/4", 3/8", 1/2" BSPT
Fits pipe outer diameter: 4mm, 6mm, 8mm, 10mm, 12mm.

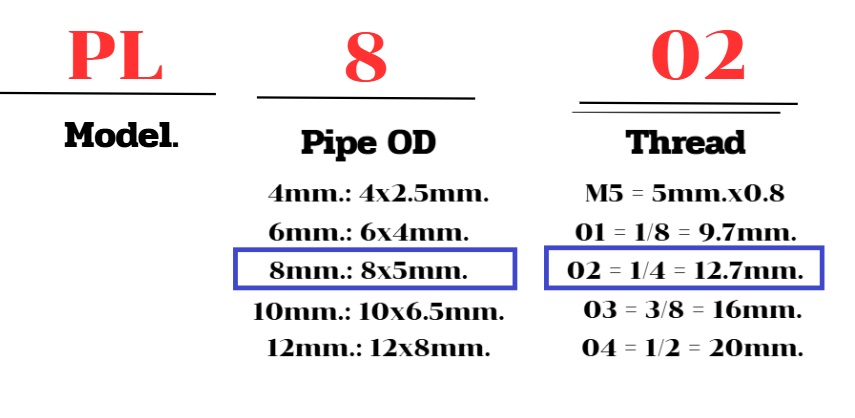

Tips:
01 = 1/8" thread, 9.7mm
02 = 1/4" Thread 12.7mm
03 = 3/8" Thread 16mm
04 = 1/2" thread, 20mm
Liquid type: air/vacuum
Working pressure: 0~10.2kgf/cm2 (0~1.0MPa)
Vacuum pressure: -750 mmHg (10 torr).
Operating temperature range: PU/nylon, polyurethane
Quick assembly material: brass/plastic.
